Water Cooled Components for use with Variable Speed Drives

Water-Cooled Braking Resistors and Chokes: Benefits, Limitations, and Technical Considerations

In high-power industrial applications, thermal management is a critical design constraint for passive components like braking resistors and chokes. Traditional air-cooled systems are limited by the thermal conductivity of air, surface area constraints, and ambient operating conditions. Water cooling presents a robust alternative, especially in environments with high power densities, limited space, or continuous operation under elevated thermal stress. REO’s range of water-cooled resistors and inductors leverages this technique to enhance performance and reliability. This article explores the technical nuances of water cooling in inductive and resistive components, examining its impact on stray effects, magnetic performance, system integration, and trade-offs — including a clear distinction between size benefits in resistors and power density improvements in chokes.

Thermal Management and Compact Design

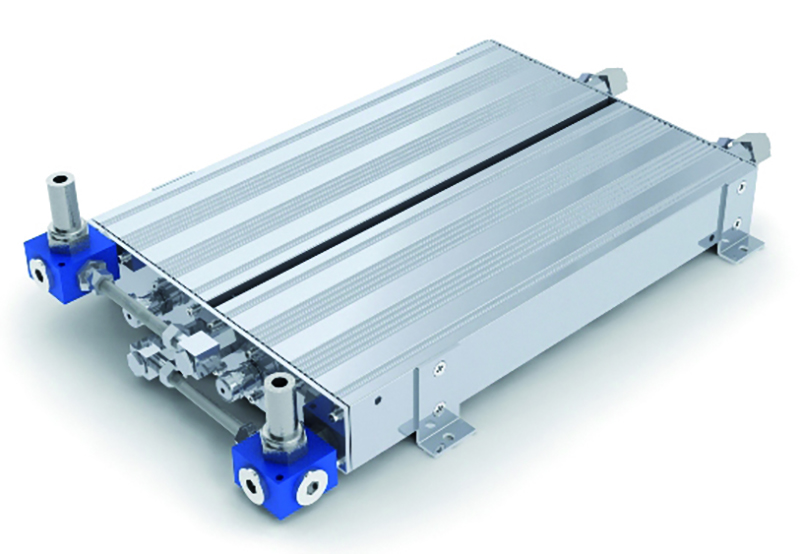

The most immediate benefit of water cooling lies in its superior thermal conductivity — approximately 24 times higher than air — allowing for rapid heat transfer and efficient dissipation. In braking resistors, which convert excess electrical energy into heat during dynamic braking, this enhanced heat transfer capacity prevents thermal overload, allowing for more compact designs. Similarly, chokes, especially those subjected to high RMS currents, benefit from a stable core and winding temperature, which reduces core losses and improves long-term insulation integrity.

Improved cooling efficiency directly translates to reduced physical size and mass, but this advantage is primarily limited to resistive components. On average, a water-cooled braking resistor can achieve the same thermal performance as an air-cooled counterpart at 30–60% of the volume and 40–70% of the mass, depending on the power rating and cooling configuration.

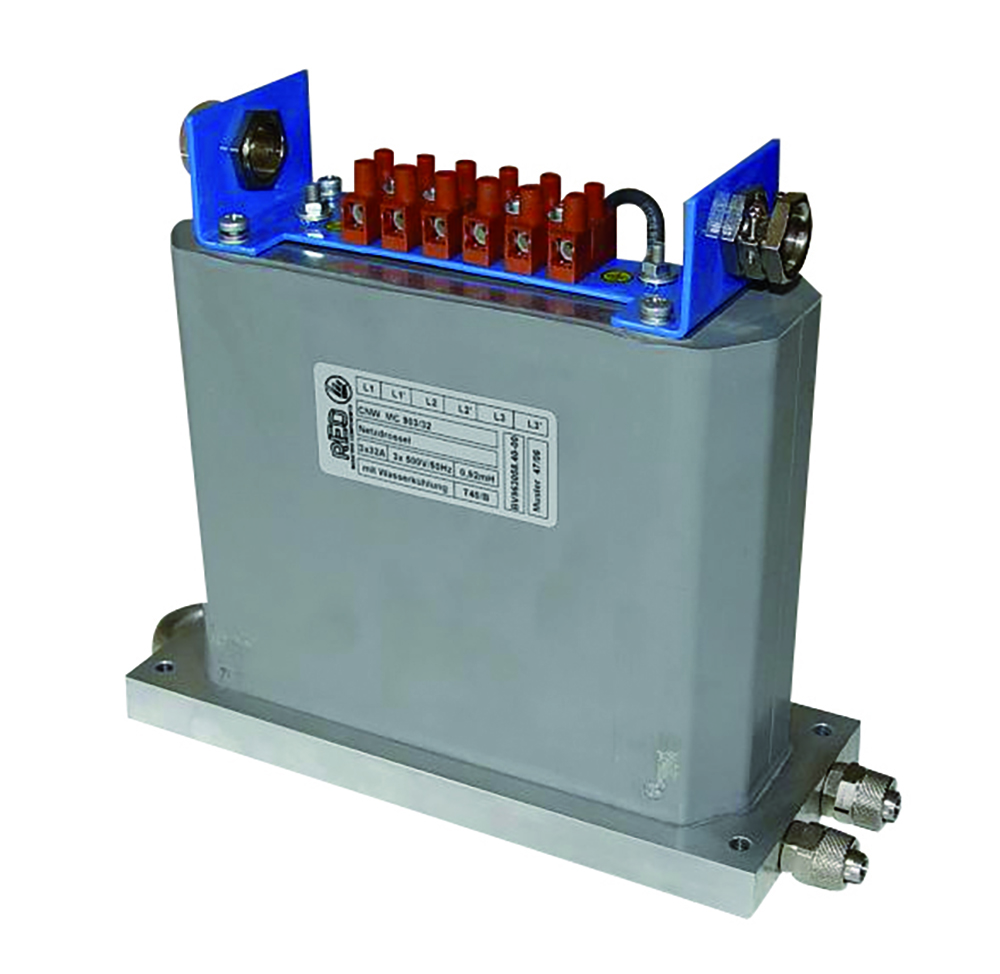

For inductive components such as chokes, the size of the magnetic core and winding structure is largely fixed by the required inductance, current handling, and magnetic flux conditions. Unlike resistors, the use of water cooling does not significantly reduce the physical size of the choke itself. However, it does enable a substantial increase in power density at the enclosure or system level. Water cooling removes the need for air ducts, heatsinks, or oversized enclosures by actively extracting losses from within a sealed design. This allows REO chokes to be integrated into IP65-rated cabinets, compact traction systems, or high-density inverter assemblies, where conventional cooling would be insufficient or impractical.

Performance Enhancements in Chokes

Chokes, particularly line reactors and output filters, generate heat primarily from copper losses (I²R) and core losses, including hysteresis and eddy currents. When operating near saturation or under high-frequency switching conditions, thermal buildup can degrade magnetic properties and shift the inductance value. Water cooling offers thermal stability, maintaining magnetic permeability and preventing premature saturation. REO water-cooled chokes can be constructed with tightly controlled winding geometries, enabled by the space savings from integrated cooling channels. This facilitates low parasitic capacitance and minimises AC losses from skin and proximity effects. With core materials such as grain-oriented silicon steel or amorphous alloys, water cooling mitigates thermal stress and preserves optimal flux density operation.

Stray Effects and Electromagnetic Interference

While thermal performance improves, water cooling introduces certain electromagnetic and mechanical design challenges. Inductors produce stray magnetic fields, which disperse naturally in air-cooled systems. Adding metallic cooling jackets, pipework, and mounting interfaces can lead to eddy current loops and unintended magnetic coupling in water-cooled systems. This may result in localised heating, parasitic losses, and EMI.

To counteract this, designs must include non-conductive coolant housings, magnetically shielded cores, and careful routing of flow channels to avoid loop formation. Additionally, materials with low magnetic permeability (e.g., stainless steel or composite polymers) are preferred for parts close to the magnetic field.

Dielectric and Isolation Considerations

Water cooling systems introduce potential isolation and leakage current concerns, particularly when used in electrically noisy environments like inverter-fed motor systems or regenerative braking circuits. De-ionised water or glycol-based coolants are often used to reduce electrical conductivity. Furthermore, pressure testing and redundant sealing are critical in medical or marine equipment applications, where IP ratings and fail-safe design are mandatory.

Mechanical Integration and Reliability

Mechanically, water-cooled resistors and chokes require additional infrastructure: pumps, heat exchangers, and leak detection systems. While these increase complexity, they also allow centralised cooling loops across multiple devices, improving thermal management at the system level. Vibration, flow rate, and coolant purity must be monitored to avoid corrosion, cavitation, or blockages that can impair performance. Despite this, the reduction in component footprint for resistors, and the increase in system-level power density for inductors, can be decisive benefits in mobile or modular systems — such as onboard rail converters, offshore platforms, or containerised drive systems — where every kilogram and cubic centimetre matters.

Cost and Application Trade-offs

Despite the performance benefits, water cooling carries a higher initial cost and increased maintenance burden. Systems must be carefully commissioned to avoid airlocks, and routine monitoring of flow rate, temperature, and pH levels is required. The additional overhead may not be justified in environments where air cooling suffices. However, water cooling often delivers a superior lifecycle cost benefit in high-demand scenarios where space, noise, and performance are critical constraints.

Conclusion

REO’s water-cooled braking resistors and chokes represent a high-performance solution for thermally demanding applications. The technical advantages include superior heat dissipation, improved power density, enhanced inductive performance, and extended component life. For braking resistors, significantly reducing size and weight enables the manufacture of highly compact assemblies. Water cooling does not reduce the magnetic core size of chokes, but it allows for a higher current handling capability within sealed, thermally constrained environments.

A well-engineered water-cooled component requires a design approach which balances magnetic, electrical, mechanical, and thermal domains to unlock the full advantages of liquid cooling while ensuring operational robustness and compliance with application-specific standards.
