Emc Filter N Cnw 103

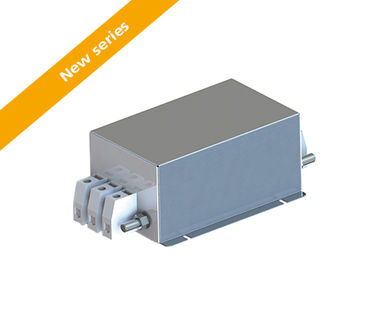

Three-phase mains filters (3 lines, single-stage)

DESCRIPTION

Recommended filter for suppressing interference according to EN 55011, Class A and EN 61800-3, category C2. Special installation – Special connections For space and for assembly reasons it may be reasonable to use connections other than terminals. If the filter is always fitted in the same place, REO can build your individual filter-whether with bolts, cable or other connections.

ADVANTAGES

• compact construction
• easy installation
• low-temperature rise
• touch-proof terminals
• good damping performance at
• a low leakage current
• useable for industrial applications
• UL approval for the complete model range

TYPICAL APPLICATIONS

Frequency converters for motor drives (e.g. lifts, materials handling, pumps, ventilation and air-conditioning systems, industrial applications, wind power installations and power supply units

TECHNICAL SPECIFICATIONS

• Conforming to: VDE 0565-3 / IEC 950 / UL 1283
• Test voltage: L-L 2100 V, DC 1s, L-PE 2700 V, DC 1s
• Overload: 1,5 x I 1 min/h
• Climatic category: DIN IEC 68 Teil 1 25/085/2
