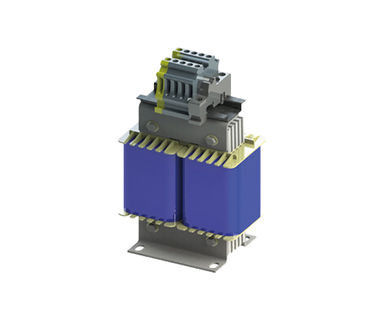

Test Choke Npt 8929

Single-phase test choke

DESCRIPTION

These chokes are used in test laboratories as load chokes. They can be interconnected with each other. If these chokes are used with appropriate resistors, a test under different cos (phi) is possible.

ADVANTAGES

• Robust design
• High flexibility
• Compact design
• Low losses

TECHNICAL DATA

• Insulation class: F at 40° C
• Climatic category: 25/085/21 DIN IEC 68 Part 1
• Max. winding temperature: 125° C
• Protection rating: IP00
• Nominal Voltage: 230 V
• Rated current: 0,5 – 32,5 A
• Inductance: 0,127 – 3180 mH
